产品概述：

  RHKD快开袋式过滤器是一种操作方便。设计新颖的新型滤袋式过滤器，具有结构合理、密封性好、耐压力高、外形美观等一系列优点。

   快开袋式过滤器主要组成部件有上翻顶盖、弹簧重力平衡装置、手轮摇紧装置、不锈钢松紧抱箍、提拉丝杆、滤器筒体和内部滤袋滤蓝等。

设计优势:

1、使用不锈钢松紧抱箍代替传统的吊环螺栓压紧装置，将过滤器 顶盖开关时间缩短至半分钟以内，比普通袋式机节约了30-50倍的操作时间，大大提高了工作效率。

2、最大耐压可达到1.2Mpa,设计压力值高于同类产品20％以上。

3、弹簧重力平衡装置替代了传统手摇臂，只需一根手指即可抬起顶盖上翻和放下。

4、顶盖开启角度105°，顶盖放下有锁紧装置。合理的设计是滤器不会产生侧翻、倾倒或顶盖放下后不宜扣上的现象。

5、每个滤袋都设计有单独的锁紧装置，确保滤袋和滤器之间完好的密封性。

6、如果内置浮球可另更换滤袋更健康 、内置磁棒可吸附金属颗粒。

7、适用于常更换滤袋的工况条件

PRODUCT OVERVIEW:

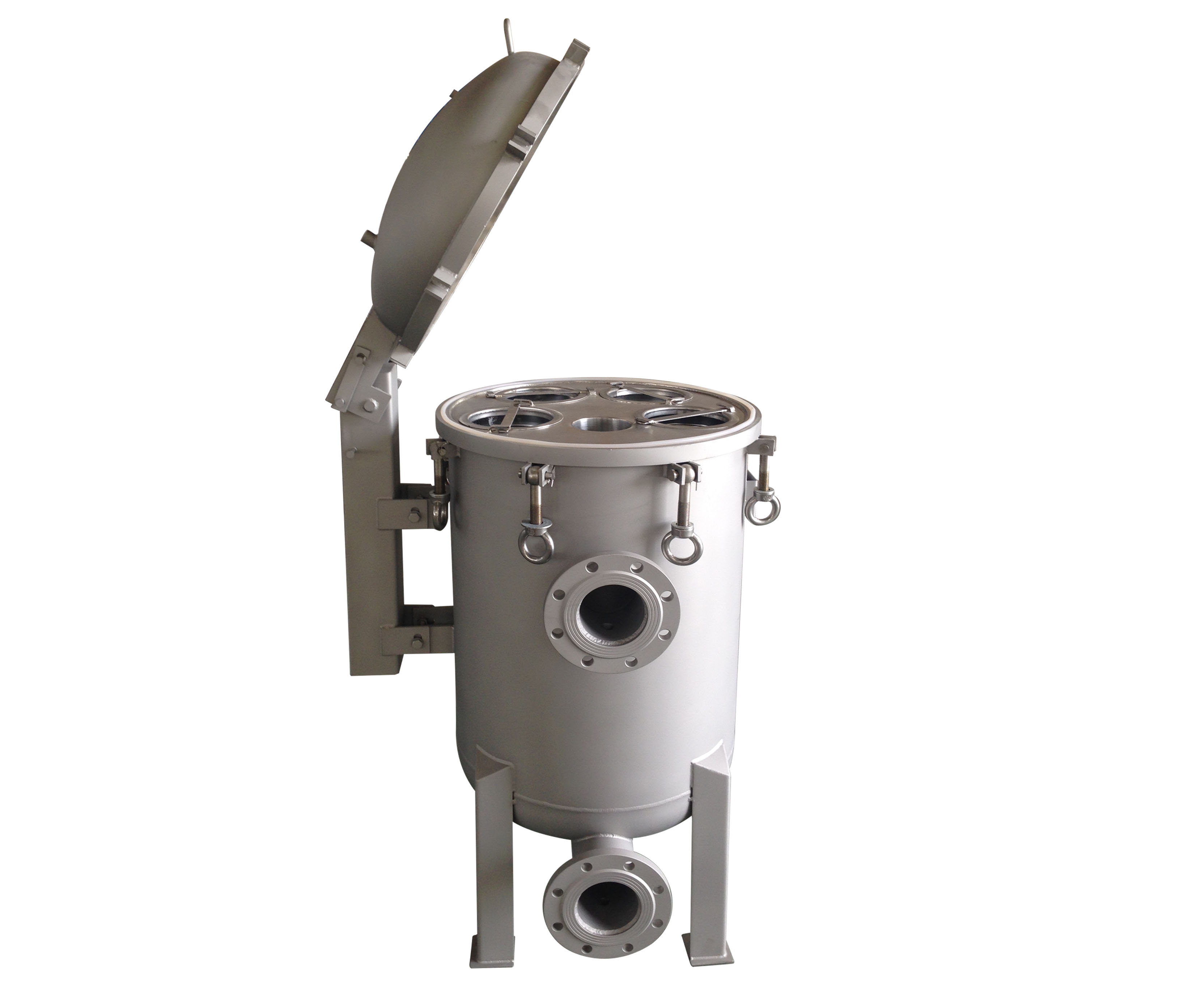

RHKD Quick opening bag filter is a kind of convenient operation, design a new type of bag filters.It has reasonable structure, good sealing, high pressure resistance, good appearance and a series of advantages.

The main components of quick opening bag filter are upturning top cap, spring gravity balance device, the handwheel shake tight device, stainless steel elastic clamp, lift and pull screw rod, filter cylinder body and internal filter bag, filter basket, etc.

Design advantage：

   1.Use stainless steel elastic hoop instead of traditional eyebolt pressure device,the filter head switch time reduced to less than half a minute,than ordinary bag machine saves 30- 50 times the operation time ,greatly improving the work efficiency.

   2.The biggest pressure can reach 1.2Mpa,the design pressure value more than 20％ higher than similar products.

   3.Spring gravity balance device replace the tradition manual rocker arm,just a finger can raise the proof and knock down.

   4.Roof opening Angle105 ℃,head down after locking device.Reasonable design make filter won't produce side turn,dumping or roof after let go of not button on the phenomenon.

   5.Each filter bag has designed separate locking device, ensure good seal between the filter bag and filter

   6.If the built-in floating ball can change the filter bag more healthy, built-in magnetic bar can adsorb metal particles.

   7.It’s suitable for the working conditions of frequently change the filter bag

技术参数：

TECHNICAL DATA：
